Product Description

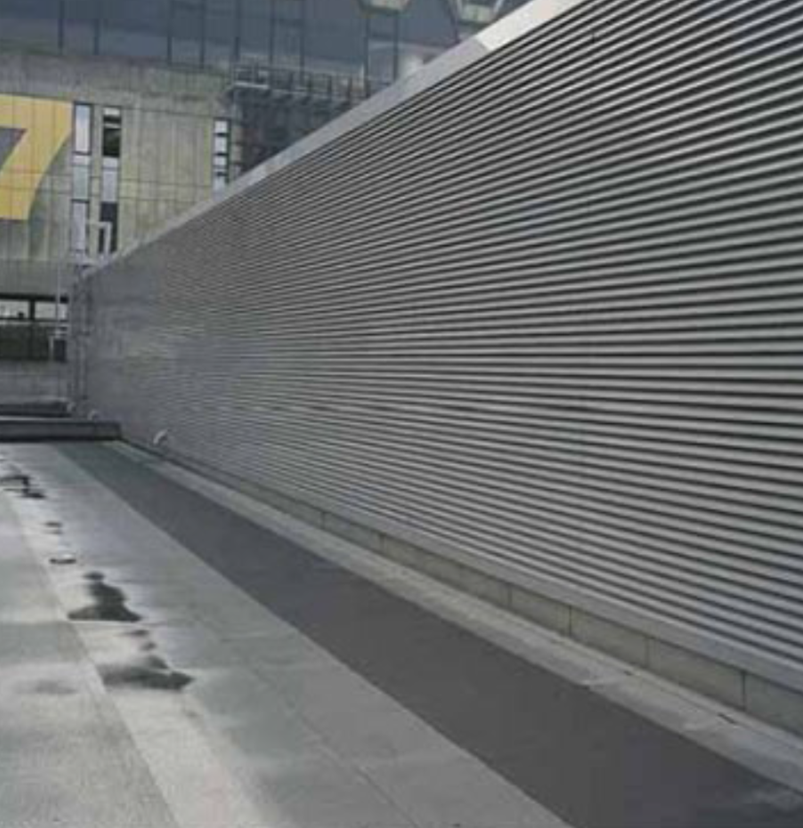

Continuous louvers providing both functional and aesthetical integration with building facades. Reinforcement bars are supplied assembled with glazing clips, these are not seen when fitted with the louvre blades.
The system can incorporate single or double doors and inter-nal/external corners.

Standard mullion depths are 14mm, 50mm or 80mm with other bespoke sizes available. Fixing detail is dependant upon building construction.

Blade Centre 75mm . Blade angle 45 degree.
Visual free area 86%. Physical free area  57%.
Louvre element tested to EN 13030:2002

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Bird mesh
  • Single skin, or double skin insulated blanking panels

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 19.04 Ce 0.232
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.8 A Face Velocity 0.5 2.85
0.5 99.3 A 1.0 11.42
1.0 98.0 B 1.5 25.70
1.5 94.4 C 2.0 45.70
2.0 83.0 C 2.5 71.40
2.5 67.8 D 3.0 102.82

Performance: airflow, louvre with insect mesh

Pressure Drop (pa) + Face velocity (m/s)
