IKL75 louvre system

IKL75 louvre system

0.00

Product Description

Blade Centre 75mm .  Blade angle 45 degree.

Visual free area 86%.  Physical free area  57%.

Frame depth 80.8mm

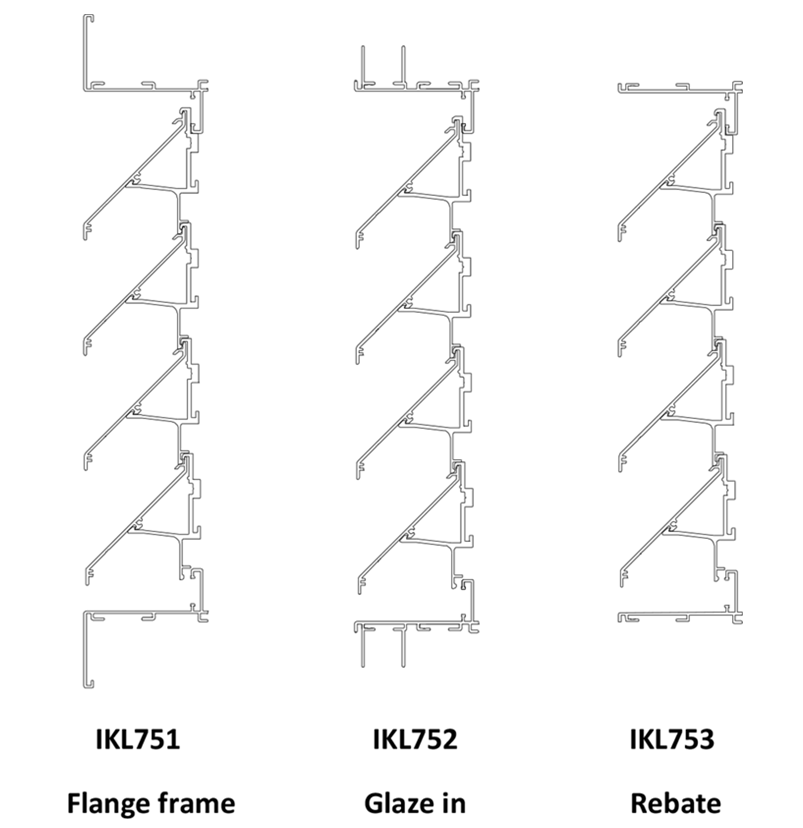

IKL751 Flange frame

IKL752 Glaze in frame. 28mm

IKL753 Rebate frame

Tested to EN 13030:2002

BSRIA Test report 56834/1

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Drainage channel.
  • Insect mesh.
  • Bird mesh.
  • Single skin, or double skin insulated blanking panels.
  • with or without plenum box.

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 19.04 Ce 0.232
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.8 A Face Velocity 0.5 2.85
0.5 99.3 A 1.0 11.42
1.0 98.0 B 1.5 25.70
1.5 94.4 C 2.0 45.70
2.0 83.0 C 2.5 71.40
2.5 67.8 D 3.0 102.82

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
