Product Description

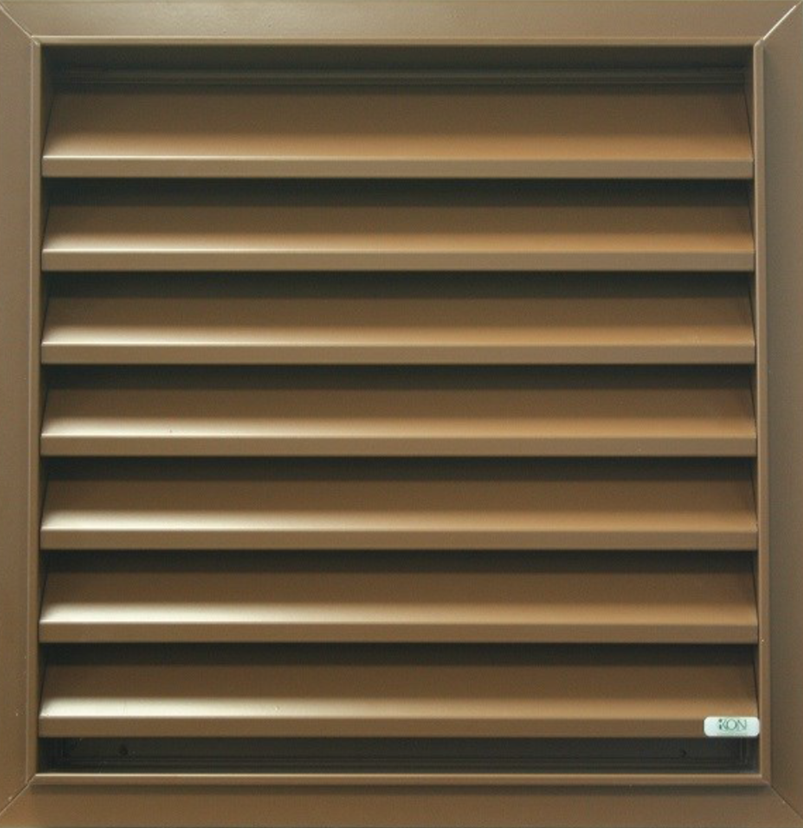

Blade Centre 50mm .Blade angle 45 degree.
Visual free area 79%. Physical free area 50%.
Frame depth 64.3mm
Designed for integration into structurally glazed curtain wall frames. Toggle glazing blocks are custom designed to suit individual systems.
Tested to EN 13030:2002
BSRIA Test report 54729/1
Options
- Standard RAL or BS colours. Anodizing to special order.
- Drainage channel.
- Insect mesh.
- Bird mesh.
- Single skin, or double skin insulated blanking panels
- with or without plenum box.
Quantity:
| K-factor 14.23 | Ce 0.265 | |||
|---|---|---|---|---|
| Watertightness | % | Class | Pressure Drop | PD |
| Velocity 0.0 | 99.4 | A | Face Velocity 0.5 | 2.13 |
| 0.5 | 98.8 | B | 1.0 | 8.54 |
| 1.0 | 97.0 | B | 1.5 | 19.21 |
| 1.5 | 92.3 | C | 2.0 | 34.15 |
| 2.0 | 86.8 | C | 2.5 | 53.36 |
| 2.5 | 76.1 | D | 3.0 | 76.84 |
