IKL504 Face fixed louvre

IKL504 Face fixed louvre

0.00

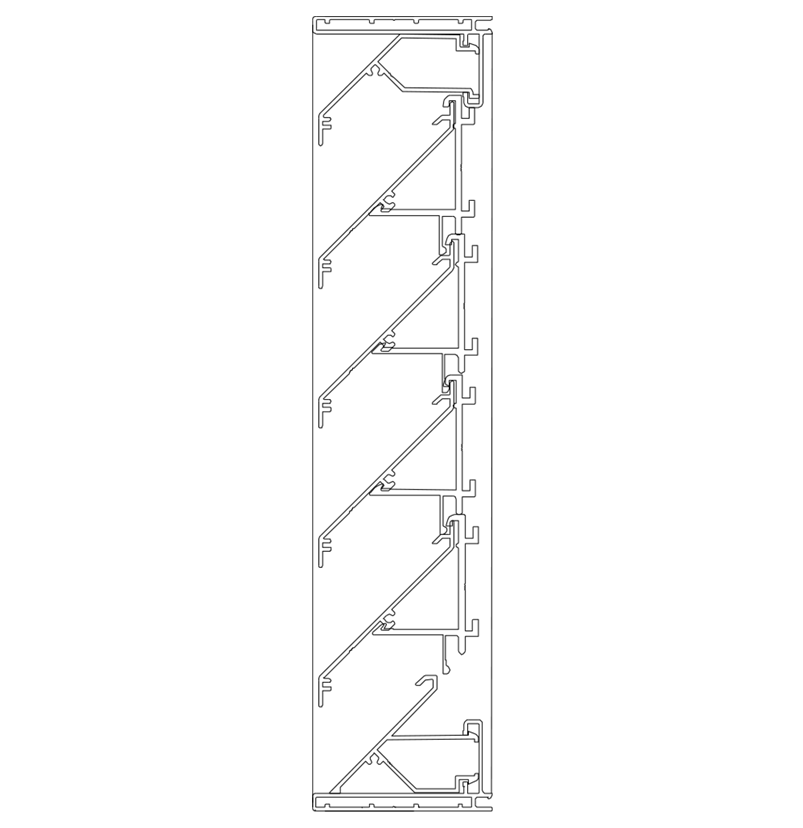

Product Description

Blade Centre 50mm .Blade angle 45 degree.

Visual free area 79%. Physical free area 50%.

Frame depth 64.3mm

Tested to EN 13030:2002

BSRIA Test report 54729/1

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Drainage channel, dependant upon fixing detail.
  • Insect mesh.
  • Bird mesh.
  • Single skin, or double skin insulated blanking panels.
  • with or without plenum box. Dependant upon fixing detail.

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 14.23 Ce 0.265
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.4 A Face Velocity 0.5 2.13
0.5 98.8 B 1.0 8.54
1.0 97.0 B 1.5 19.21
1.5 92.3 C 2.0 34.15
2.0 86.8 C 2.5 53.36
2.5 76.1 D 3.0 76.84

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
