IKL50 Louvre system

IKL50 Louvre system

0.00

Product Description

Blade Centre 50mm . Blade angle 45 degree.

Visual free area 79%. Physical free area 50%.

Frame depth 64.2mm.

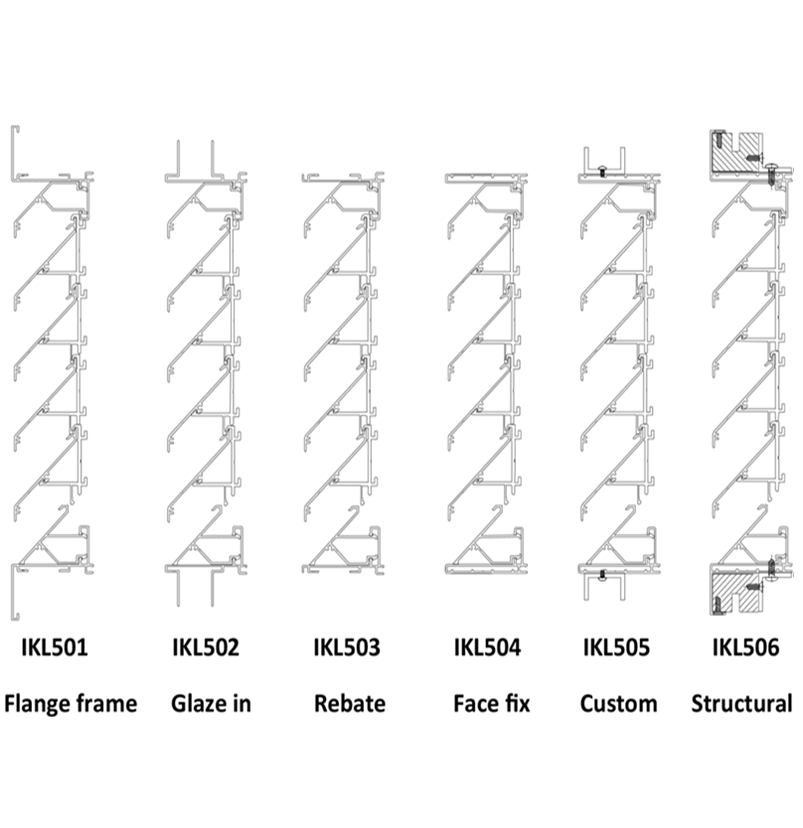

IKL501 Flange frame.

IKL502 Glaze in frame. Options 24mm, 28mm.

IKL503 Rebate frame.

IKL504 Face fix frame.

IKL505 Custom frame.

IKL 506 Structurally glazed frame

Tested to EN 13030:2002

BSRIA Test report 54729/1

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Drainage channel.
  • Insect mesh.
  • Bird mesh.
  • Single skin, or double skin insulated blanking panels.
  • with or without plenum box.

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 14.23 Ce 0.265
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.4 A Face Velocity 0.5 2.13
0.5 98.8 B 1.0 8.54
1.0 97.0 B 1.5 19.21
1.5 92.3 C 2.0 34.15
2.0 86.8 C 2.5 53.36
2.5 76.1 D 3.0 76.84

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
