IKL50 Hinged

IKL50 Hinged

0.00

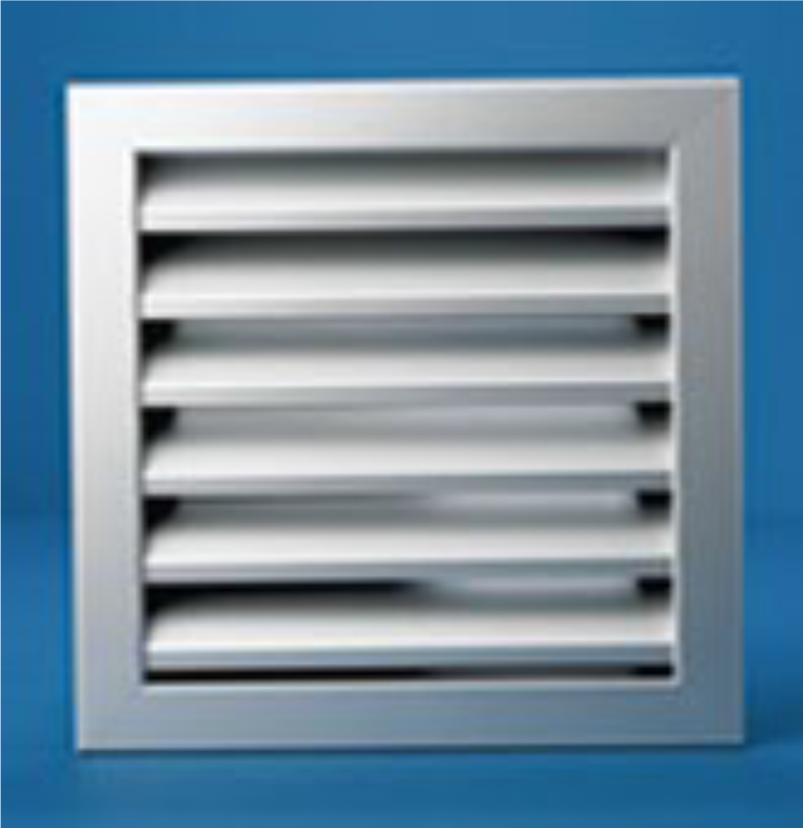

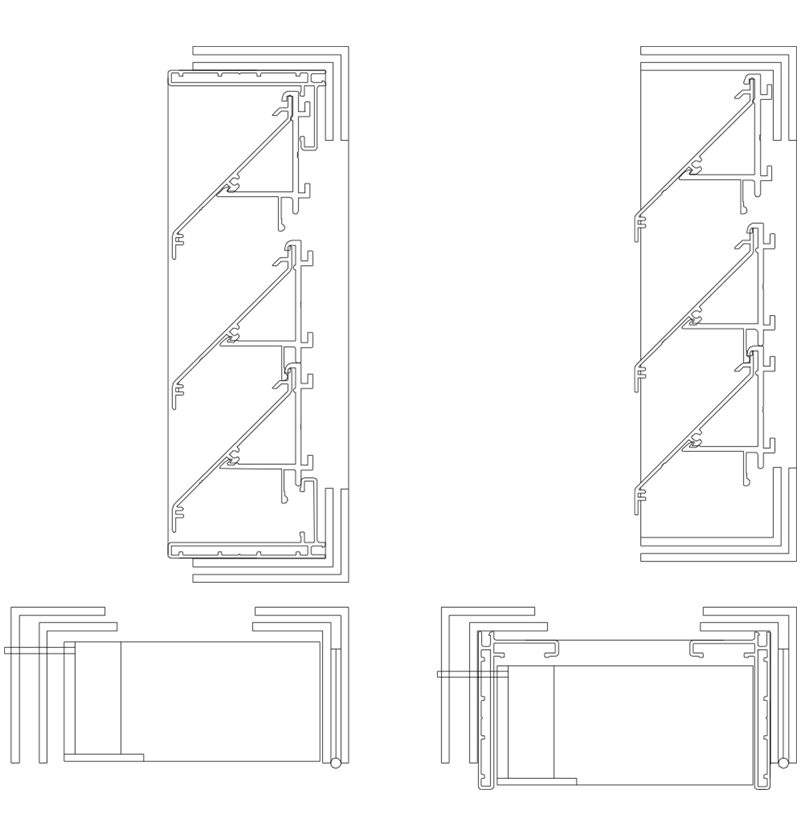

Product Description

Butt hinged side hung opening panel complete with budget locking.

Opens out.
Blade Centre 50mm .  Blade angle 45 degree.
Visual free area 79%.  Physical free area 50%.
Frame depth 63.5mm
Custom outerframe options utilizing channels, angles or pressings.
Louvre element tested to EN 13030:2002.
BSRIA Test report 54729/1.
Results of testing of the louvre element only shown.

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Insect mesh
  • Bird mesh

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 14.23 Ce 0.265
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.4 A Face Velocity 0.5 2.13
0.5 98.8 B 1.0 8.54
1.0 97.0 B 1.5 19.21
1.5 92.3 C 2.0 34.15
2.0 86.8 C 2.5 53.36
2.5 76.1 D 3.0 76.84

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
