IKCL95 Continuous louvre

IKCL95 Continuous louvre

0.00

Product Description

Continuous louvers providing both functional and aesthetical integration with building facades.

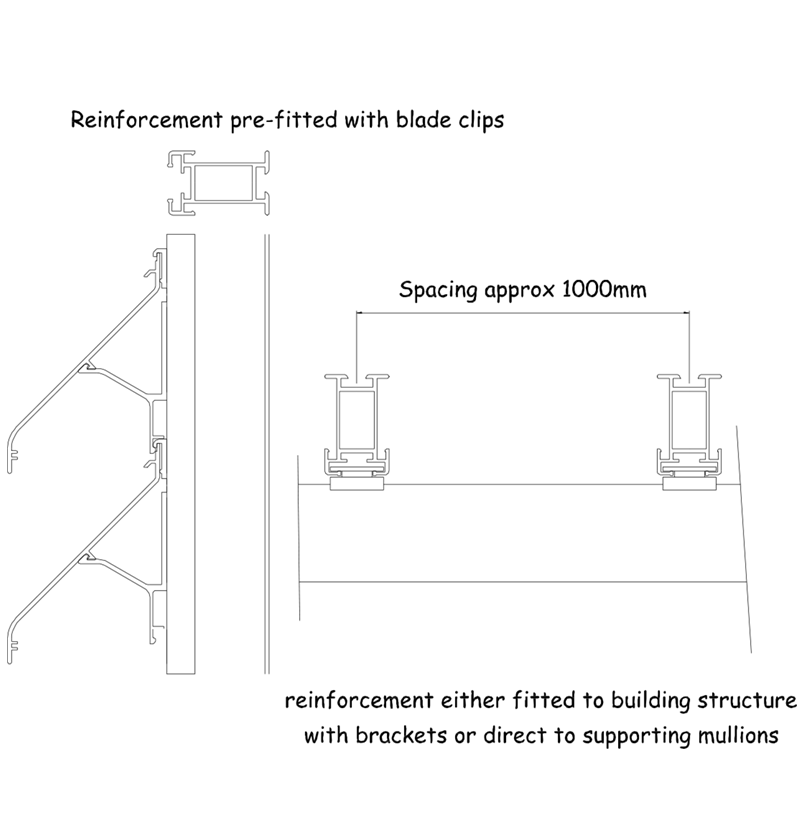

Reinforcement bars are supplied assembled with glazing clips. These are not seen when fitted with the louvre blades.

Standard mullion depths are 14mm, 50mm or 80mm. other bespoke sizes are available.

Fixing detail is dependant upon building construction.

Blade Centre 95mm . Blade angle 45 degree.

Visual free area 81%. Physical free area 56%.

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Bird mesh.
  • Single skin, or double skin insulated blanking panels

Click to view product colour charts →
