IKCL50 Continuous louvre

IKCL50 Continuous louvre

0.00

Product Description

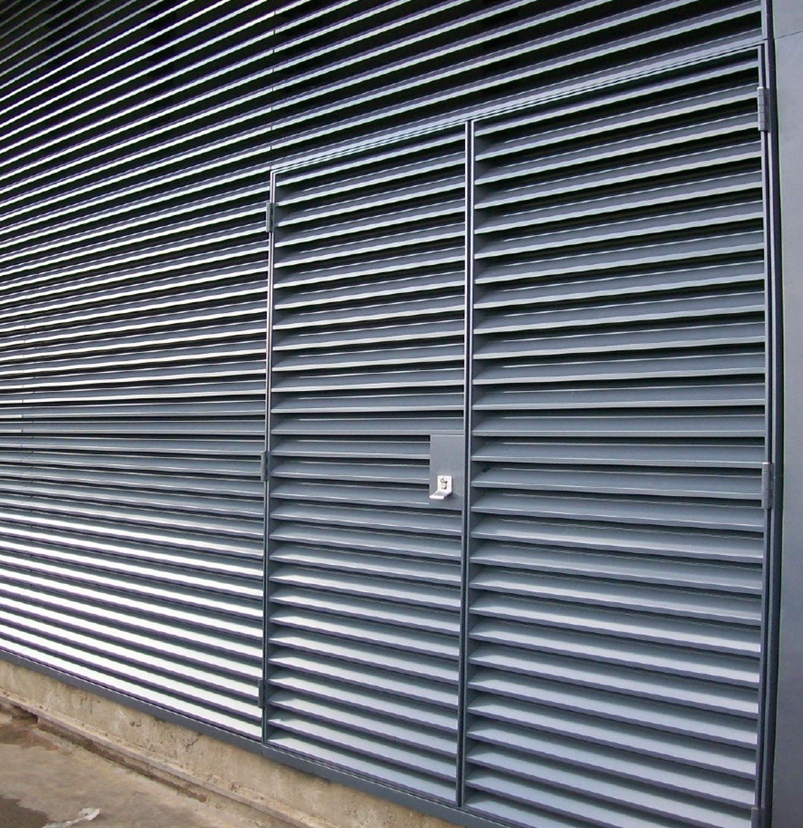

Continuous louvers providing both functional and aesthetical integration with building facades. Reinforcement bars are supplied assembled with glazing clips. These are not seen when fitted with the louvre blades. The system can incorporate single or double doors and internal/external corners. Standard mullion depths are 14mm, 50mm or 80mm. other bespoke sizes are available.


Fixing detail is dependant upon building construction.

Blade Centre 50mm .  Blade angle 45 degree.

Visual free area 79%.  Physical free area 50%.

Louvre element tested to EN 13030:2002.

BSRIA Test report 54729/1

Options

  • Standard RAL or BS colours. Anodizing to special order.
  • Bird mesh.
  • Single skin, or double skin insulated blanking panels.

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 14.23 Ce 0.265
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.4 A Face Velocity 0.5 2.13
0.5 98.8 A 1.0 8.54
1.0 97.0 B 1.5 19.21
1.5 92.3 C 2.0 34.15
2.0 86.8 D 2.5 53.36
2.5 76.1 D 3.0 76.84

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
