Product Description

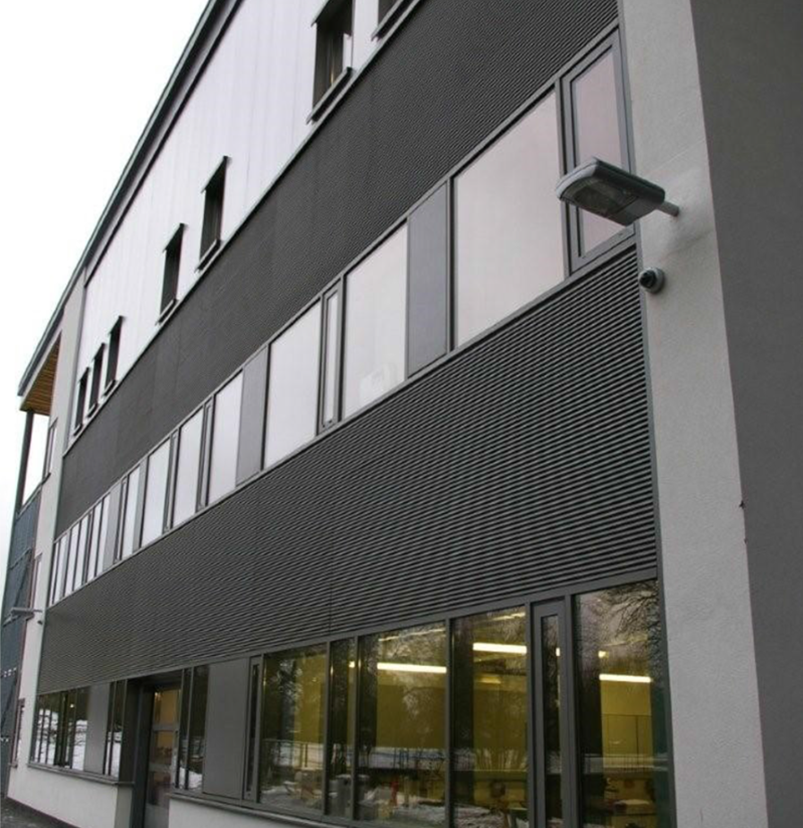

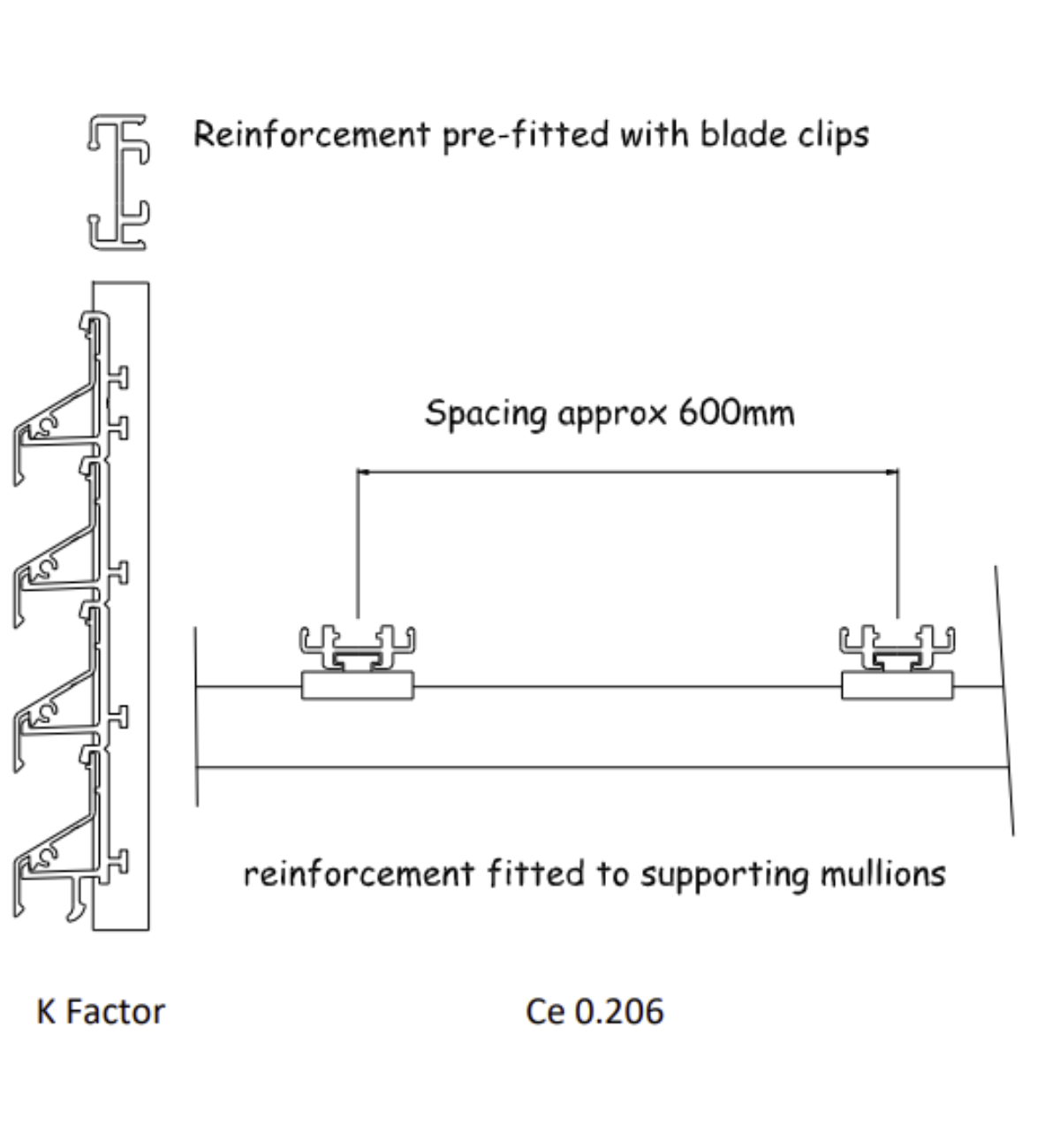

Continuous louvers providing both functional and aesthetical integration with building facades. Reinforcement bars are supplied assembled with glazing clips.

These are not seen when fitted with the louvre blades
Standard mullion depths are 10.3mm, 50mm or 80mm. other bespoke sizes are available. Fixing detail is dependant upon building construction

  • Blade Centre 34mm Blade angle 60 degree.
  • Visual free area 59% Physical free area 43.5%.
  • Louvre element tested to EN 13030:2002
  • SRIA Test report 52719/1

Options

Standard RAL or BS colours. Anodizing to special order.

  • Insect mesh
  • Bird mesh
  • Single skin, or double skin insulated blanking panels

Click to view product colour charts →

Quantity:
Add To Cart
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.7 A Face Velocity 0.5 3.43
0.5 99.4 A 1.0 13.75
1.0 97.4 B 1.5 30.93
1.5 81.4 C 2.0 54.98
2.0 49.9 D 2.5 85.91
2.5 32.4 D 3.0 123.71

Performance: airflow, louvre with insect mesh

 Pressure Loss (Pa) vs Face velocity (m/s)
