Product Description

Options

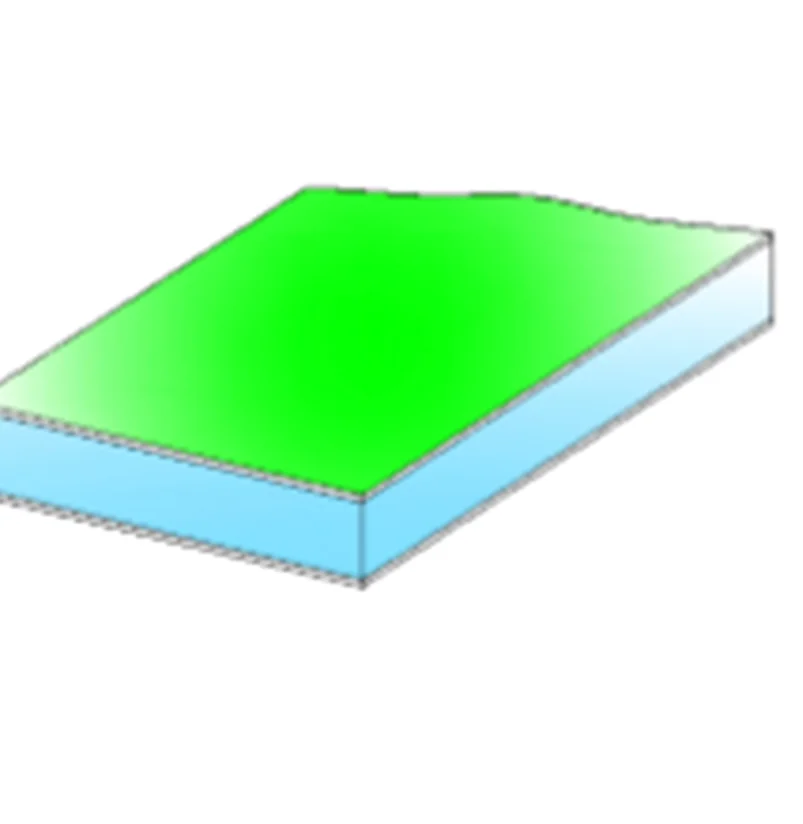

Insulated sandwich panels, comprising two skins of aluminium and Styrofoam insulation.

Optional foil tape to edges.

Various thicknesses of insulation are available to suit individual U value requirements.

Rigid Phenolic insulation can be used to decrease U value and increase fire rating.

Suitable for use as cladding or for glazing into windows and doors.

Tray panels can be provided.

Various cut outs can be incorporated as required.

Standard RAL or BS colours.


Click to view product colour charts →

Quantity:
Add To Cart

Styrofoam  - Reaction to fire, Euroclass EN13501-1 Class E.

Rigid Phenolic Insulation—Reaction to fire, BS476 Part 6 and Part 7—results conform to Class O of the UK Building Regulations, Epiradiateur—M1, ASTM E84 25/50 Flame and Smoke—up to 3 inches thick, NEN 6065/6066—Klasse 1/2, DIN 4102—B1

Insulation Technical data sheets and Safety data sheets available upon request.
